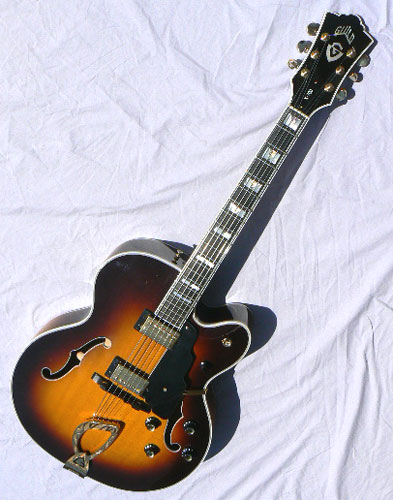

c.1998 Guild X-700 Stuart

Price and Status: For pricing and hold status of this instrument, please check here. If this instrument does not appear on the Instruments page it has been sold. To be notified of examples of this or any other model in the future, please email your specific requests to [email protected].

Serial #: AK700254, Westerly, RI label

Body size at lower bout:17" Scale length: 24 3/4" Nut width: 1 10/16"

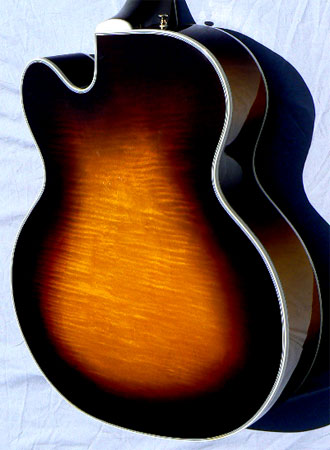

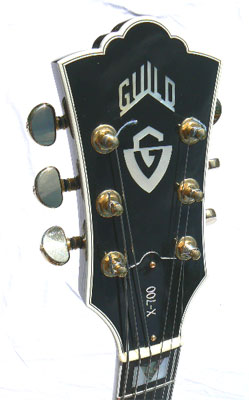

Materials: Solid carved bookmatched spruce top, arched tiger flame maple back, sides and neck; solid ebony fingerboard with mother of pearl/abalone V-block inlay; G-logo peghead inlay; 8-ply body binding, 5 ply fingerboard binding, triple bound headstock and f-holes, bone nut.

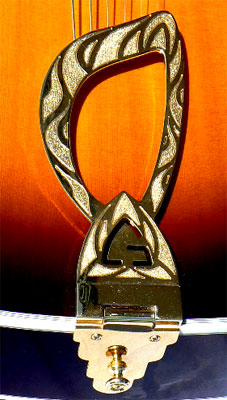

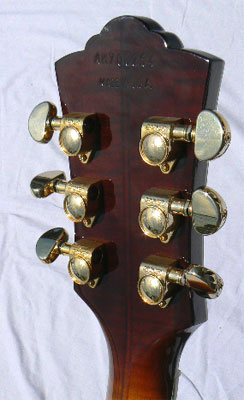

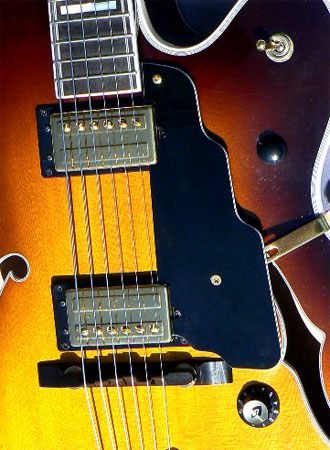

Hardware: 100% original hardware, including hand-engraved gold tailpiece; compensated ebony bridge; gold Grover Rotomatic tuners; beveled art deco stairstep pickguard; gold Guild humbucking pickups; tone and volume controls for each pickup, master volume and pickup selector switch on cutaway horn.

Notes: Introduced in 1994, the X-700 Stuart is the top of the Guild electric line, their only such model with a solid carved bookmatched Sitka spruce top. Like its counterpart, the Gibson L-5CES, the X-700 has the 17" Venetian cutaway body, mounted pickups and controls, deluxe multiply binding and gold hardware throughout. From Epiphone's Emperor, the X-700 adapted the abalone/pearl V-block fingerboard inlay. And another New Yorker, name of D'Angelico, supplied inspiration for the art-deco pickguard. Produced in very limited numbers, the X-700 was discontinued in 1999, making this exceptional example one of the very last ever produced.

This example is a product of the Rhode Island factory, where Guild enjoyed its greatest years, from 1966 until its closing in 2001. An elegant and resonant working jazz box, the X-700 has a sleek neck profile and a full-depth body that is notably feedback resistant. This example is in 100% original virtually unplayed condition, without pick, buckle, thumb or fingerboard wear, and all gold plating in brilliant condition. A rare and highly sought after model, the X-700 is an exceptional find for the serious player looking for great value in a true carved top jazz box. One only, call now.

Setup: This instrument is strung with medium gauge nickel strings (.012-.054). The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 5/64" to 6/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.

Case: Original Guild black plush hardshell case.
