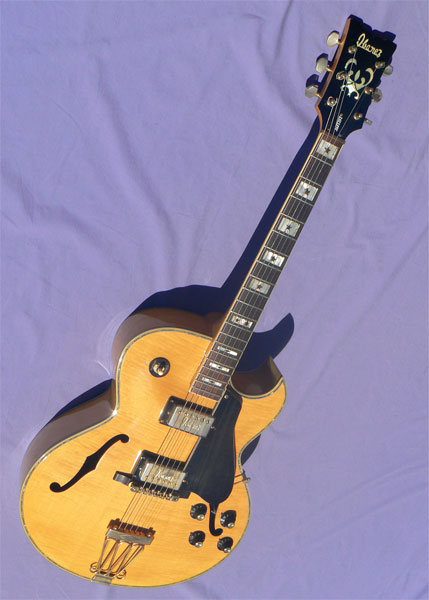

c. 1974 Ibanez Artist Jazz, Model 2616
Status: For pricing and hold status for this instrument,
please check our Instruments
page here. If this
instrument does not appear on the Instruments page
it has been sold, and is no longer available. Photos and descriptions of
Previously Sold instruments may by found
here. To be notified of examples of this
or any other model in the future, please contact [email protected].happy to contact you as soon as they become available.
Body size at lower bout: 16" Scale length: 24 3/4" Nut width: 1 19/32" Neck depth, 1st/10th frets: .87/.97

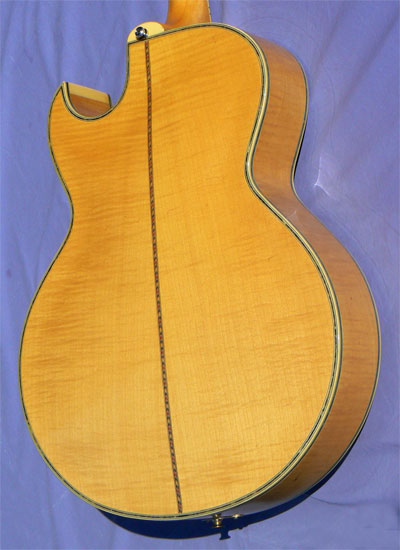

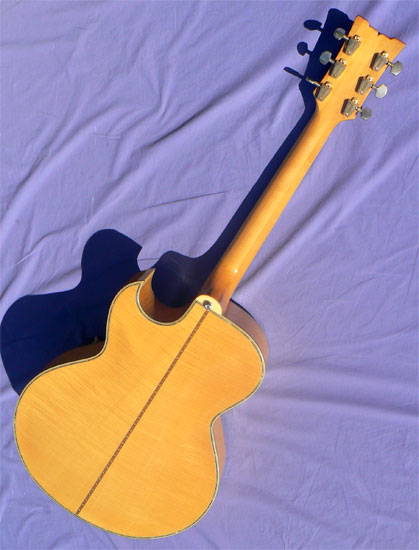

Materials: Three-piece solid maple neck with adjustable truss rod; bookmatched arched flame maple body; solid ebony fingerboard and compensated bridge; mother of pearl block fingerboard inlay and peghead inlay; abalone body binding, triple bound fingerboard.

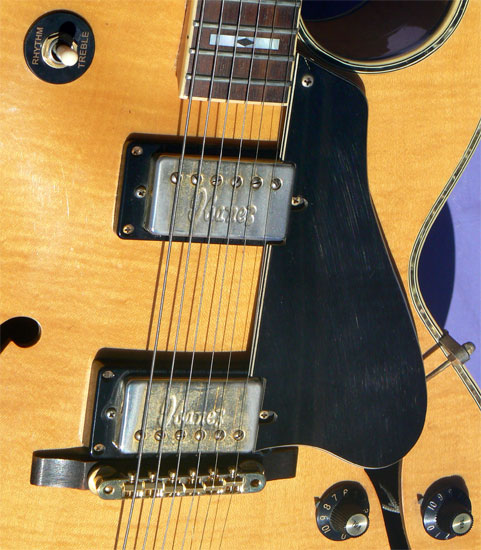

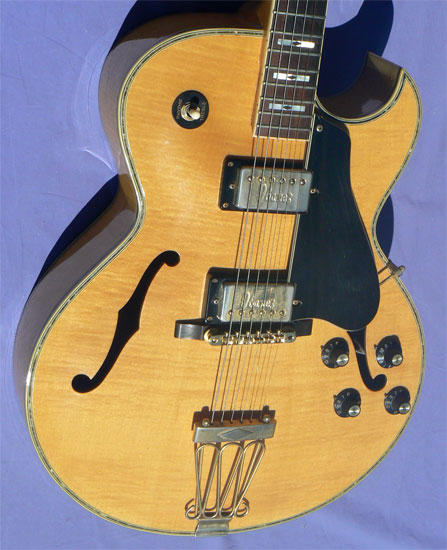

Hardware: Original gold hardware includes twin Super 70 humbucking pickups, Ibanez sealed tuners, T-bar trapeze tailpiece, adjustable compensated Tuneomatic style ebony bridge, 3 way pickup selector; 5-ply pickguard; black bonnet volume and tone knobs (one replaced); adjustable truss rod. Solid brass nut.
Notes: If imitation is the sincerest form of flattery, consider this guitar a valentine to the Gibson Guitar Company. In the early 70's Ibanez set out to make high-precision replicas of Gibson's top-end instruments. So successful were they that Gibson sued to stop production, which was subsequently halted under court order. Now known as 'lawsuit' models, these guitars have become legendary for their rarity, and their scrupulous faithfulness to the originals.

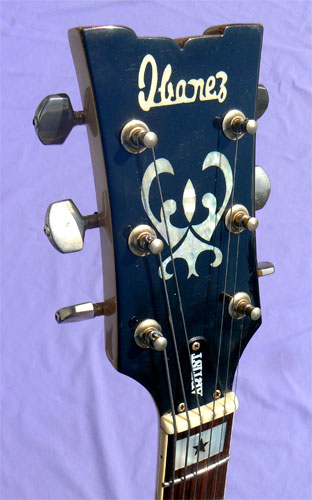

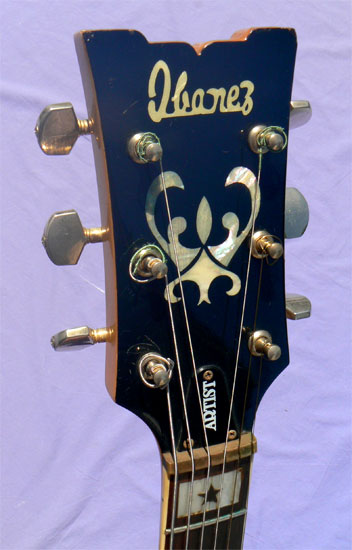

The Artist Jazz Model (#2616), is the rare upscale version of the firm's several 175 clones, featuring all gold hardware, flamed maple body, unique star fingerboard inlays, and distinctive colorful abalone binding. Quite faithful in dimensions, scale and bracing to it's Gibson namesake, the peghead shape and Ibanez logo pickup covers suggest a date of manufacture circa 1974.

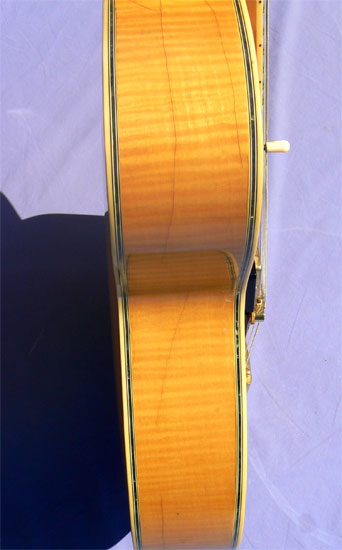

A true gig warrior, this model is an all-time favorite of working pros, who prefer to leave their spendy originals at home. This example is in splendid condition with no cracks, pick, buckle, thumb or fingerboard wear. Apart from some extended lines of lateral finish checking on the sides and cutaway, and some fogging of the original gold plating, the guitar shows few signs of age for its long career.
The neck is slim and elegant, with smooth low action over a fresh high precision setup as well. If you've been searching for one of these beauties, don't dawdle: this guitar is the most faithful clone anyone's going to build, as long as Gibson has lawyers.
Setup: The frets have been precision leveled, crowned and polished as required; trussrod tension and neck relief adjusted; bridge height adjusted; bridge compensation set; string slots at nut and bridge inspected and recut as necessary; bridge foot contour inspected and fit to top as necessary; bridge radius inspected and recurved as necessary; bridge wheels and tuners lubricated; fingerboard and bridge oiled; body and neck cleaned and hand polished.
This instrument is strung with medium gauge nickel flatwound strings. The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 5/64" to 6/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.
Case: Original black plush lined hardshell case.
