Status: Pricing and hold status for all instruments currently available is shown on our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may be found here. To be notified of examples of this model or similar instruments in the future, please contact [email protected],. Please be specific on which instrument(s) you're looking for, and we'll be happy to contact you as soon as they become available.
Serial #: 20760001, orange Custom Shop label.
Body size at lower bout: 17" Body depth: 3" Scale length: 25 1/2" Nut width: 1 11/16" Neck depth, 1st/10th frets: .80/.93

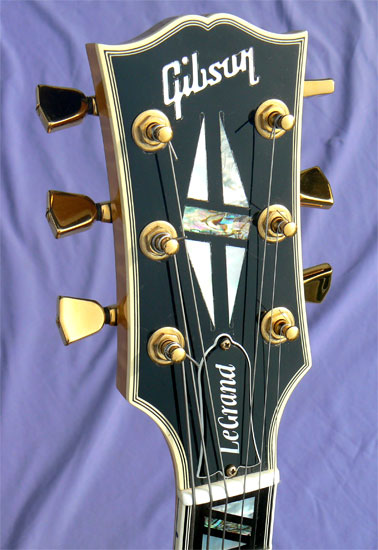

Materials: Handcarved bookmatched solid quartersawn Sitka spruce top; solid carved AAA tiger maple back and sides; 3 piece tiger flame neck with walnut centerstripes; solid ebony fingerboard with Super 400 style block fingerboard inlay; Super 400 style split diamond peghead with Gibson logo and block-and-wedges inlay on the back; 7-ply body binding, 5-ply peghead and fingerboard binding, 3 ply back binding, bound f-holes, solid bone nut.
Hardware: All original gold hardware includes floating Gibson BJB humbucking pickup with volume control and endpin jack; adjustable finger tailpiece; solid ebony bridge with pearl inlay in base; Gibson/Schaller Deluxe tuners; bound tortoise pickguard; engraved truss rod cover.

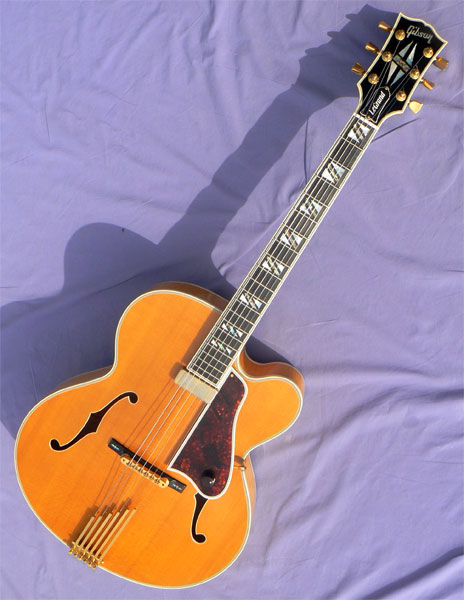

Notes: Introduced in 1993, Gibson's LeGrand model draws inspiration from the two most highly prized archtops of the 20th century. The direct successor to the popular Johnny Smith model, the LeGrand features the comfy, slightly slimmed 3" body, and warm, X-braced soundboard of its famed predecessor. And from the classic L-5, the Le Grand borrows the long 25 1/2" scale for snap and projection, as well as the nimble 1 11/16" fingerboard. The result is an instrument that combines the best of Gibson's most influential acoustic archtop guitars.
This stunning example is crafted from intensely figured bookmatched tiger flame maple in the back, sides and neck, all highlighted by its warmly ambered natural blonde lacquer finish. The guitar is topped with a graduated quartersawn X-braced Sitka spruce soundboard of exceptionally fine grain as well. The gold hardware and electronics are all original, and include the adjustable finger tailpiece, compensated adjustable ebony bridge, and classic BJB floating humbucking pickup, as used on the Citation, Kalamazoo Award and other ultra-premium Gibson archtops.
Carefully maintained, the guitar is free of pick, buckle, thumb or fingerboard wear, and apart from a few wisps of age checking and some fogging on the pickup cover, appears all but unplayed. The fingerboard inlays are brilliant with colorful Paua abalone inserts within white pearl blocks. Action is smooth and low over a slim, elegant D profile neck, with a fresh high precision setup over fine original medium jumbo fretwork, on the solid ebony fingerboard. (A compensated ebony bridge saddle can be supplied for this guitar on request as well.)
The voice is warm and appealing, with the depth and sustain of a tap-tuned X-braced soundboard, and the projection of the long scale design. Always highly limited in production, the LeGrand has been out of production since 2010, and is seldom seen on the vintage market. A rare opportunity for player and collector alike, and an welcome find in a true Gibson classic. One only: call now.
Setup: Trussrod tension and neck relief adjusted; bridge height adjusted; bridge compensation set; string slots at nut and bridge inspected and recut as necessary; bridge foot contour inspected and fit to top as necessary; bridge radius inspected and recurved as necessary; bridge wheels and tuners lubricated; fingerboard and bridge oiled; body and neck cleaned and hand polished, electronics and grounding tested.
This instrument is strung with medium
gauge nickel flatwound strings. The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 4/64" to 5/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.
Case: Original black premium Gibson arched plushlined hardshell case.
