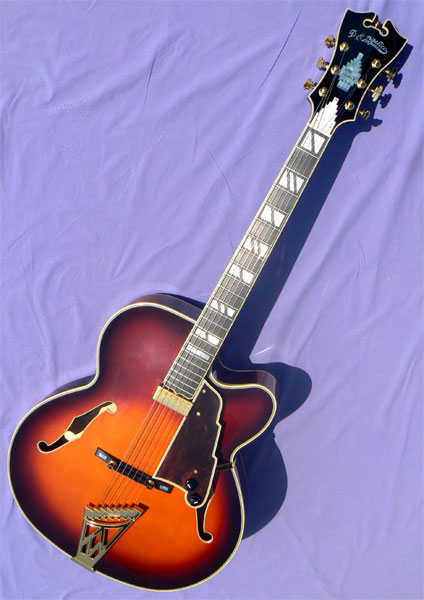

2002 D'Angelico New Yorker NYL-4

Status: Pricing and hold status for all instruments currently available is shown on our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may be found here. To be notified of examples of this model or similar instruments in the future, please contact [email protected],. Please be specific on which instrument(s) you're looking for, and we'll be happy to contact you as soon as they become available.

Serial #: 0020030402, label signed by Hidesato Shiino

Body size at lower bout: 18". Scale length: 25 1/2" Nut Width: 1 11 1/6" Neck depth, 1st/10th frets: .73/.87

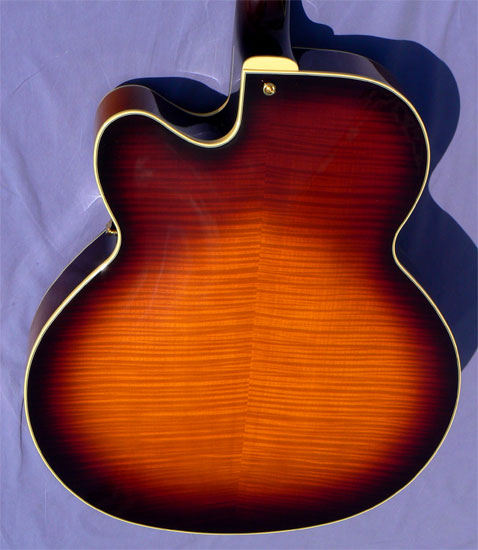

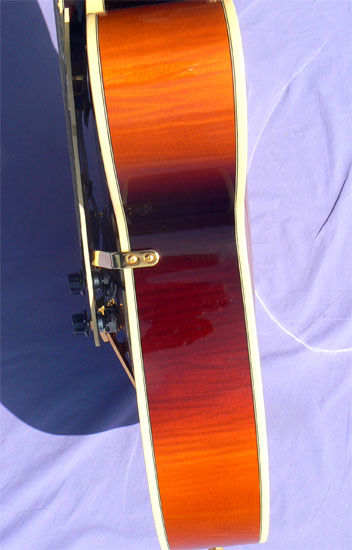

Materials: Solid bookmatched X-braced spruce top; arched flame maple back, and sides; solid maple neck; solid ebony fingerboard with pearl slashed-block inlays; seven ply top binding; triple bound back, headstock, fingerboard and f-holes.

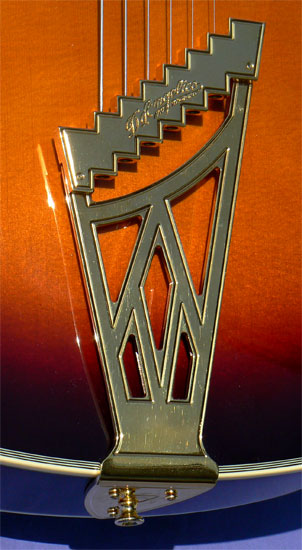

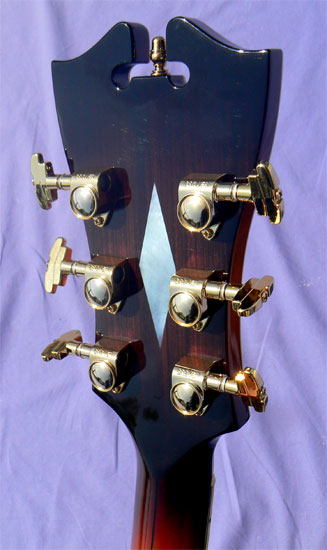

Hardware: All original gold hardware including stairstep DA logo tailpiece; Grover Rotomatic sealed back tuners with Imperial keys; gold plated floating Johnny Smith style adjustable humbucking pickup with volume and tone controls mounted to pickguard; inlaid adjustable compensated ebony bridge; quintuple bound tortoise stairstep pickguard.

Notes: The D'Angelico NYL-4 is a tribute to the flagship model of legendary luthier John D'Angelico, the godfather of archtop builders worldwide. With its commanding 18" body and perrless art-deco design, the New Yorker set the standard for power, elegance and prestige.

The solid spruce top is X-braced for warm, woody tone with superior feedback resistance, and the gentle C neck profile is finely balanced for ease of play with effortless action. This example is an original Vestax built model, signed by Hidesato Shiino of the Terada workshop near Nagoya, Japan. The guitar is in glorious 100% original condition, without pick, buckle, thumb or fingerboard wear, all original gold hardware, and plush original deluxe hardshell case.

This remarkable example shows exceptional figure in the tiger flame body throughout, and the X-braced solid spruce super jumbo soundboard produces a rich, deep voice, smoothly amplified by the Armstrong Johnny Smith pickup. Action is low and easy over immaculate original fretwork, and the gentle C profile neck glides effortlessly through the palm. No longer in production, these guitars are scarce on the vintage market, and have become highly sought after by players and collectors alike. One only: call now.

Setup: This instrument is strung with medium gauge flatwound nickel strings. The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 1/16" to 3/32" at the 12th fret, with moderate relief. The action may be lowered or raised to your requirements with the adjustable bridge.

Case: Original deluxe brown faux alligator DA logo plush lined hardshell case.
