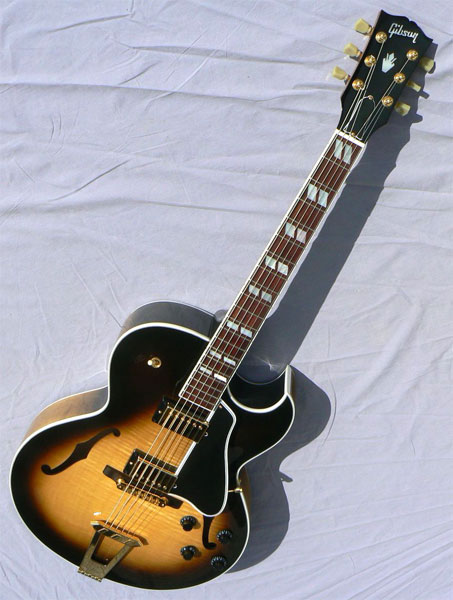

2010 Gibson ES-175D

Status: For pricing and hold status for this instrument, please check our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may by found here. To be notified of examples of this or any other model in the future, please contact [email protected].

Serial #: 10810706, orange oval label

Body size at lower bout: 16". Scale length: 24 3/4" Nut Width: 1 11/16"

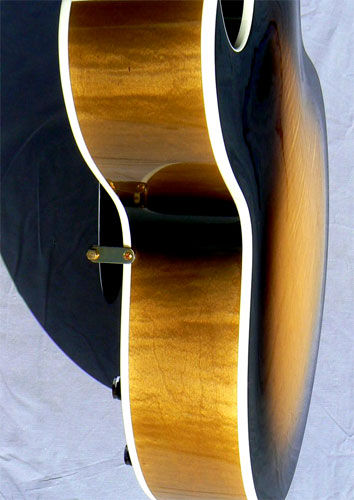

Materials: Solid mahogany neck; solid rosewood fingerboard; figured maple top sides and back; dual-parallelogram mother of pearl fingerboard inlay and thistle peghead inlay; triple bound top, bound back.

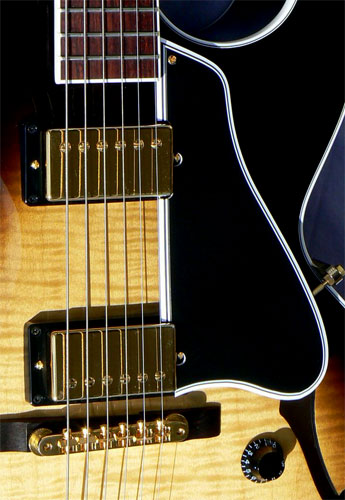

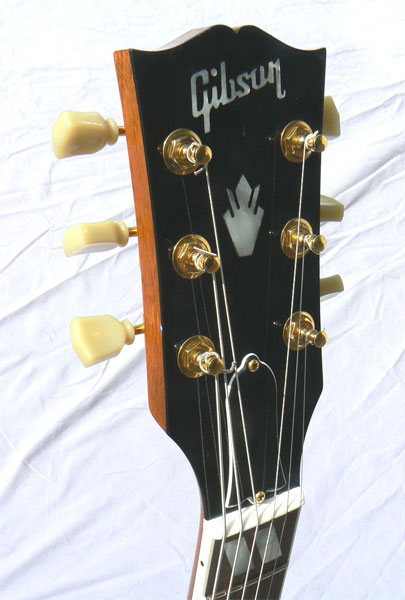

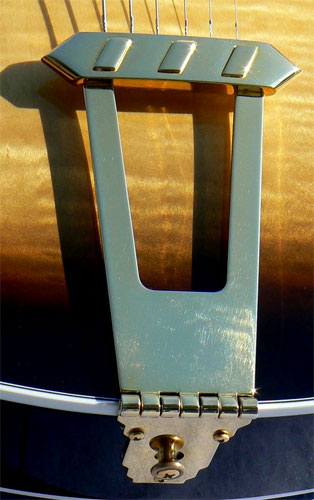

Hardware: 100% original gold hardware, including Gibson Deluxe single ring tulip key tuners, trapeze tailpiece with raised-parallelogram crossbar; compensated Tuneamatic bridge; Gibson '57 Classic PAF style humbucking pickups and electronics; wide beveled 5-ply pickguard; black bell knobs; 3 way control switch.

Notes: Since its introduction in 1949, the Gibson ES-175 has been the most popular jazz guitar in the world. Originally fitted with a single P-90 pickup, the 175 added a second pickup by 1951, and humbuckers by 1957. The mahogany neck is a feature of the classic models of the 50's and 60's , and produces an instrument that is distinctly lighter in weight, and notably better balanced.

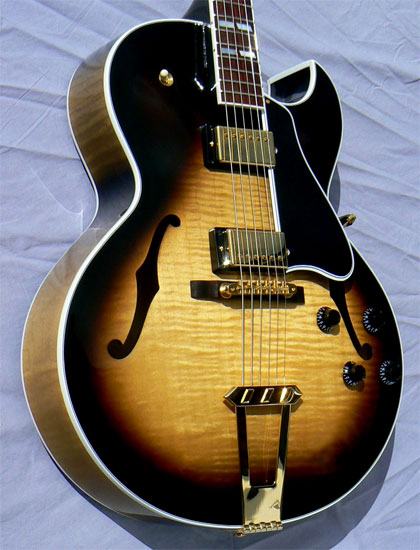

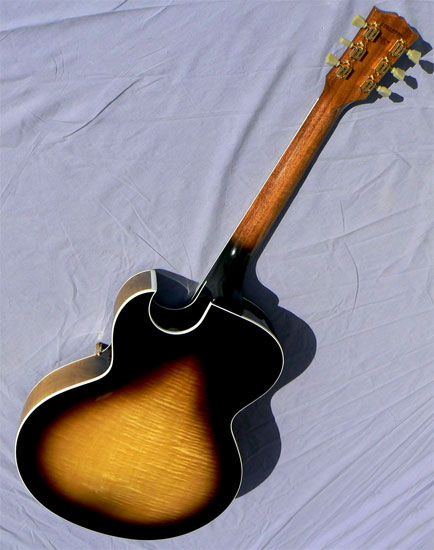

This example is crafted of extravagant tiger flame figure, and finished in a classic vintage sunburst. The instrumernt is in immaculate condition, free of pickwear, bucklewear, thumb or fingerboard wear. The top and back show satiny rollers of deep flame to great advantage. With immaculate medium jumbo frets and a classic gentle C profile, the neck is utterly effortless to play. The 24 3/4" scale is fast and nimble, the twin '57 Classic humbuckers are fat and sweet, and the 16" body is easy to cradle and substantially resistant to feedback. A classic instrument in a distinguished lineage that spans a half century of hard-working guitars.

Setup: The frets have been precision leveled, recrowned and polished as needed; trussrod tension and neck relief adjusted; bridge height adjusted; bridge compensation set; string slots at nut and bridge inspected and recut as necessary; bridge foot contour inspected and fit to top as necessary; bridge wheels and tuners lubricated; fingerboard and bridge oiled; body and neck cleaned and hand polished.

This instrument is strung with medium gauge nickel roundwound strings (.013-.056). The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 5/64" to 6/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.

Case: Deluxe black arched Gibson hardshell case with plush lining.
