2014 Eastman Frank Vignola FV-680CE

Status: Pricing and hold status for all instruments currently available is shown on our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may by found here. To be notified of examples of this model or similar instruments in the future, please contact [email protected],. Please be specific on which instrument(s) you're looking for, and we'll be happy to contact you as soon as they become available.

Serial #: 14750781

Body size at lower bout: 15" Body Depth: 3 1/8" Scale length: 25 3/8" Nut: 1 3/4" Neck depth: .82/.93, 1st/10th frets

Materials: Solid hand graduated fine grain spruce top; solid carved ribbon mahogany body and neck; solid ebony fingerboard; 7 ply body binding; polished bone nut.

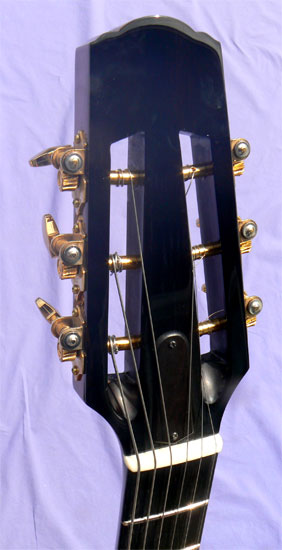

Hardware: Solid ebony tailpiece, finger rest, and compensated adjustable bridge; gold Gotoh 15:1 tuners; floating Jason Lollar Johnny Smith style humbucking pickup; thumbwheel volume and tone controls and endpin jack.

Notes: All solid. All carved. Hand built, one at a time, with remarkable high-figure tonewoods. Eastman archtop guitars are individually crafted by violin-trained luthiers, without shortcuts, the old-fashioned way. And they share the appointments of the costliest high-end guitars. All at a price point previously dominated by factory plywood boxes.

Designed by innovative Utah luthier Ryan Thorell, the Eastman Frank Vignola Model celebrates one of the most accomplished guitarists on the jazz scene today. With credits spanning from Winton Marsalis to Tommy Emmanuel, Vignola has maintained an unusually prolific schedule of touring, recording and teaching engagements worldwide

Built to his exacting specifications, the Eastman Vignola sports a comfy 15" Selmer style profile, with a solid carved parallel braced spruce soundboard. The 25 3/8" scale optimizes for projection and dynamic range, all conveyed faithfully to the amp by the Jason Lollar Johnny Smith floating humbucker.

With its highly figured ribbon mahogany body and neck, the FV-680 is remarkably lightweight at just 5lb. 9oz. in total, and is deftly balanced on the lap or the strap. The neck profile is well tailored to the palm in a comfy, traditional C profile, with smooth low action over a fresh high precision setup. Graced with Frank's signature 'open leaf' soundholes, the Vignola also rewards the player with an oval sound port in the bass side, right under the ear.

Apart from a few incidental finish nicks. this gleaming example appears virtually unplayed, with all original hardware, electronics, and true lacquer finish, and is accompanied with its original hardshell case and Certificate of Authenticity. If you've wanted to step up to the quality of a true hand carved instrument, or are looking for a fine backup guitar for gigs and travel, here's the real thing: a true best buy in a genuine pro-quality archtop. One only: call now.

Setup: This instrument is strung with medium gauge nickel flatwound strings. The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 4/64" to 5/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.
