1966-9 Gibson Johnny Smith Double

Status: For pricing and hold status for this instrument, please check our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may by found here. To be notified of examples of this or any other model in the future, please contact [email protected].

Serial #: 800767, Orange "Union Made" Kalamazoo label

Body size at lower bout:17" Scale length: 25" Nut width: 1 3/4"'

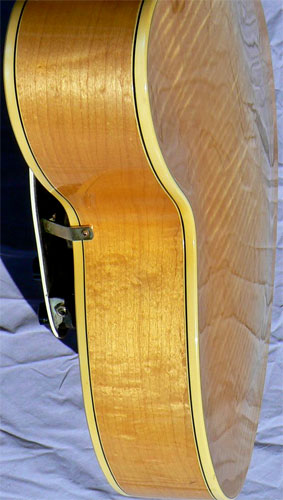

Materials: Handcarved bookmatched solid spruce top; highly figured tiger flame maple sides and neck; handcarved bookmatched flame maple back; ebony fingerboard with mother of pearl block fingerboard and peghead inlay; 7-ply body binding, 5-ply peghead and fingerboard binding, 3 ply back binding, bound f-holes, bone nut.

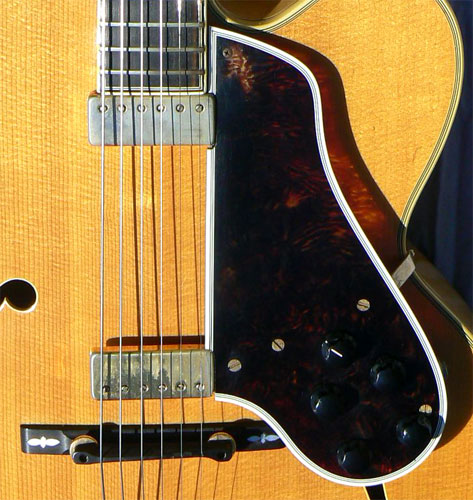

Hardware: Engraved gold-plated medallion tailpiece; solid ebony bridge with pearl inlay in base; gold Kluson Sealfast tuners; twin gold floating Johnny Smith humbucking pickups with mini-jack mounted under pickguard; quintuple-bound tortoise pickguard; "Custom" imprint. truss rod cover.

Notes: Introduced in 1961, the Gibson Johnny Smith Model represented the pinnacle of Smith's design creativity, in an instrument that married classic body styling with unprecedented technical innovation. Four decades later, it's hard to envision a time when the only floating pickups available were the DeArmond or the McCarty pickguard pickup. The Johnny Smith debuted the world's first floating humbucking pickup, now the industry standard. Taking inspiration from the past as well as the future, Smith resurrected the classic X-braced top, a design used by Gibson in the 1930's. With it's increased sustain and warm, throaty tone, the X-brace has become the standard as well among contemporary archtop builders from Benedetto on.

While some of Smith's innovations were revolutionary, many more were evolutionary; incorporating a number of ergonomic refinements designed to improve the playability of the instrument in subtle but significant ways. Feeling constrained by the standard 1 11/16" nut, Smith again reached to past masters and revived the more generous 1 3/4" fingerboard of the early 30's, a favorite of finger-style players. Similarly, Smith introduced a 25" scale, to facilitate stretch voicings without sacrificing response. Finally, the body was slimmed by 1/8th of an inch to an even 3" depth, to make it just that much easier to hold.

The result is an instrument unique in playability, tonal response, and design aesthetics. The visual appointments of the Johnny Smith are drawn from a number of Gibson paramount models. The 17" Venetian cutaway body and deco tailpiece are those of the L-5C, the neck and peghead are from the Super 400, and the opulent 7-ply body binding recalls the classic Epiphone Emperor.

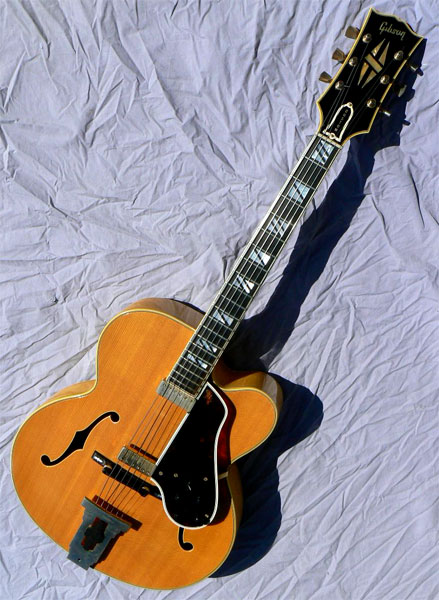

This outstanding instrument is the rarest example of the model, with both the blonde finish and double floating pickups. (Gibson's serial numbers allow us only to bracket the precise date of manufacture, but no more than 17 examples were built built in any one of these model years. So rare are they that in 1966, only a single blonde JS double left the factory.) This remarkable guitar has been preserved in simply astounding original condition, complete with original case and canvas case cover. Highly figured tiger flame back and neck; all original amber blonde finish with no pick, buckle, thumb or fingerboard wear; original gold JS medallion tailpiece and Kluson Sealfast tuners; twin floating gold humbuckers with independent volume and tone controls and rotary selector switch; comfy light D profile neck with ebony fingerboard, solid ebony bridge with inlaid base, orange Union Made label. The strap pin was moved from above the heel the cap to below it some years ago, and apart from some plating wear and a bit of crystallization of the pickguard, this guitar shows little signs of age, except for the warm tone of wood aged over four decades.

Now unavailable for almost 20 years, the JS is a definitive milestone in the evolution of the modern jazz guitar. And it'd take some doing to find one nicer than this.

Setup: The frets have been precision leveled, crowned and polished; trussrod tension and neck relief adjusted; bridge height adjusted; bridge compensation set; string slots at nut and bridge inspected and recut as necessary; bridge foot contour inspected and fit to top as necessary; bridge radius inspected and recurved as necessary; bridge wheels and tuners lubricated; fingerboard and bridge oiled; body and neck cleaned and hand polished.

This instrument is strung with medium gauge nickel strings (.013-.056). The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 5/64" to 6/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.

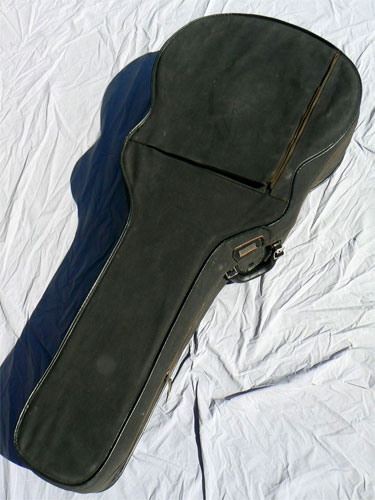

Case: Original black deluxe Gibson Faultless gold plush hardshell case with blue canvas case cover.
