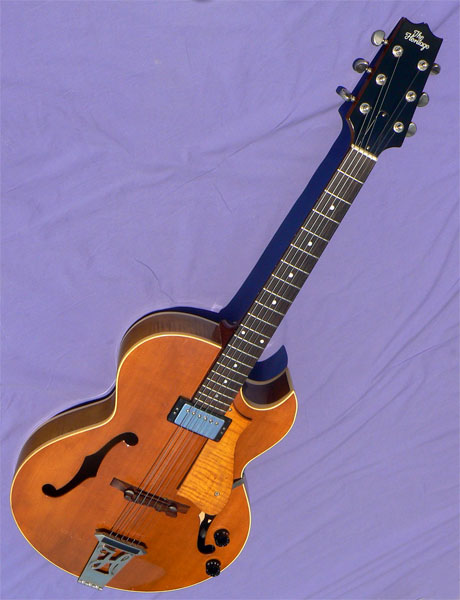

1998 Heritage H-575, Single Pickup

Status: For pricing and hold status for this instrument, please check our Instruments page here. If this instrument does not appear on the Instruments page it has been sold, and is no longer available. Photos and descriptions of Previously Sold instruments may by found here. To be notified of examples of this or any other model in the future, please contact [email protected].

Serial #: O-10502

Body size at lower bout: 16". Scale length: 24 3/4" Nut width: 1 11/16" Neck depth, 1st/10th frets: .84/.95

Materials: Solid carved Sitka spruce top, solid tiger maple back and sides, solid mahogany neck, solid rosewood fingerboard; bound body and neck.

Hardware: 100% original nickel hardware, including Grover Rotomatic tuners; Heritage logo trapeze tailpiece; compensated rosewood bridge; Heritage Schaller humbucking pickup; figured maple pickguard; black barrel volume and tone knobs; adjustable truss rod.

Notes: Handbuilt in Kalamazoo by former Gibson artisans in the old Gibson plant, the Heritage H-575 features a 16" Florentine cutaway body, parallel bracing, and fast 24 3/4" scale. Unlike its Gibson counterpart, the ES-175, the Heritage H-575 is built with all solid tonewoods throughout, for lighter weight and greater resonance. A rare example of the single pickup version of the model, this handsome instrument was built with a solid, graduated Sitka spruce top, an option long unavailable on this popular guitar.

This striking instrument is built with an extravagantly flamed tiger maple body, with a deeply ambered natural blonde finish. At just 5lb, 13oz, it's nimbly balanced on the lap or the strap, and the slightly slimmed 2 7/8" depth body is notably comfortable under the arm. Maintained in fine condition, the instrument is without cracks, pick, or fingerboard wear, with a few incidental lacquer nicks by the tailpiece and some light buckle worming on the back.

The guitar has smooth low action over fine original fretwork, with a fresh high precision setup, and a gentle D profile neck that plays effortlessly. The solid graduated spruce soundboard offers superior acoustic responsiveness, and the compact 16" body is easy to hold, and a joy to play.

Even Gibson's costly L-4CES doesn't offer a solid carved maple back like this handsome gigmeister. A rare bird, and one of the best buys in a true US built, hardworking jazz box. One only: call now.

Setup: This instrument is strung with medium gauge nickel flatwound strings. The guitar will accommodate lighter or heavier gauge strings, according to preference. String action is set at 4/64" to 5/64" at the 12th fret, with moderate relief for acoustic playing with medium strings. The action may be lowered or raised to your requirements with the adjustable bridge.

Case: Deluxe black arched plush lined hardshell case.
